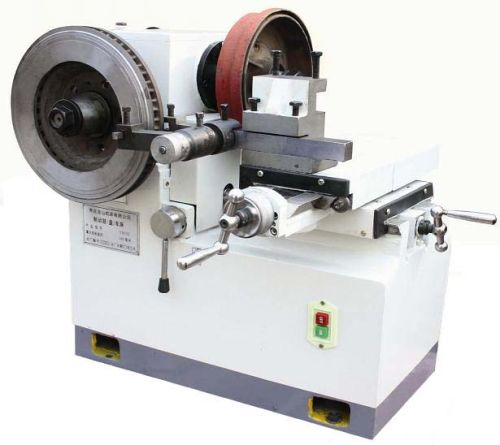

C9335 Brake Drum Lathe

C9335 brake drum（disc）lathe
c9335 brake drum（disc）lathe
1.main feature
1.1 in the same machine, you can complete machining and repair for the brake drum and brake disc.
1.2 the maximum size: brake drum is 350mm, brake disc is 350mm.
1.3 gearbox is lubricated with oil pump.
1.4 mainly for cutting brake drumdisc of car.
2main specifications
specifications unit c9335
range of machining diameter mm brake drum
180-350
brake disc
180-350
rotating speed of work-piece rmin 90
max. Travel of tool mm 100
motor power kw 0.75
power three-phases
380v50hz
or single- phases
220v50hz
overall dimensions
（l x w x h） mm 695×565×635
packing dimensions
（l x w x h） mm 750×710×730
n.wg.w kg 200260
