A Cable Armouring Wires is a metal cover usually applied in form of wire or formed wire, intended to protect the cable from mechanical damage. We manufacture Cable Armouring Wires including Round /....

Company Information

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

A Cable Armouring Wires is a metal cover usually applied in form of wire or formed wire, intended to protect the cable from mechanical damage.

We manufacture Cable Armouring Wires including Round / Formed wires for cable industries, as per Indian / International specifications e.g. IS-3975 / 1999 and BS – 1442.

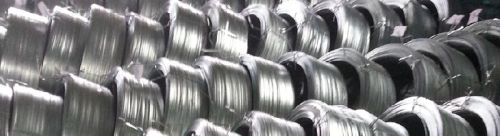

Hot Dipped Galvanized Strips Round and Formed Wires (with round and flat cross section) are manufactured in modern galvanized furnace with latest technology to ensure superior quality. The formed and round wires have superior corrosion resistance, tensile strength and flexibility.

Size mm>			4.00 X 0.80	6.1 X 1.40
Cross Section >	Width>	A	4.00	6.10
		B	3.40	5.30
	Thicknes>	C	0.80	1.40
	Radius>	R	10.00	27.5
Tolerance mm (+/-)>			10%	10%
ZINC Coating Gm/Sq. Mt.>			110	180
Tensile Strength Mpa>			300-500	300-500
Elongation % (min.)>			10	10
Resisitivity Ohm-Cm X 10 -6max>			14.5	14.5

Size mm	0.70	0.70	0.90	1.25	1.40	1.60	2.00	2.50	3.15	4.00
Tolerance mm (+/-)	0.02	0.025	0.03	0.035	0.04	0.045	0.05	0.065	0.08	0.10
ZINC Coating Gm/Sq. Mt.	45	60	75	90	90	95	105	110	120	135
Tensile Strength Mpa	300 - 500	300 – 500	300 - 500	300 - 500	300 - 500	300 - 500	300 - 500	300 - 500	300 - 500	300 - 500
Elongation % (MIN.)	10	10	10	10	10	10	10	10	10	10
Resisitivity Ohm-Cm X 10 -6max	14.5	14.5	14.5	14.5	14.5	14.5	14.5	14.5	14.5	14.5
