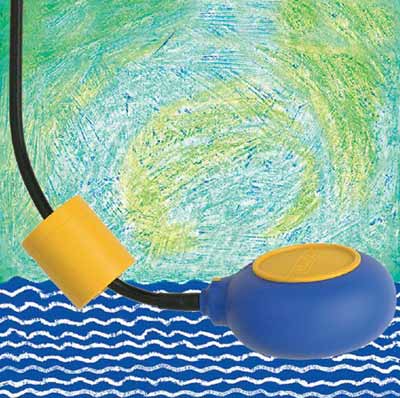

Cable Float Level Switch

Cable Float Level Switch

Get Latest Price

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are into offering cable float level switch that has double chamber and a final remoulding finish to make it absolutely hermetic. Switch differential is set with the help of a counter weight that can be adjusted alongside the cable of the switch. Its non-toxic body materials and mercury-free operated microswitch enable its use in drinking water applications.

View More Details

Company Information

Filpro Sensors Pvt Ltd

Magadi Road, Bangalore, Karnataka

Member Since 15 Years
Nature of Business Retailer
GST No. 29AACCF4801H1ZS

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical Data

TYPE

NL-100

Maximum load

16 A 250 V AC, AC1

Cable material

PVC or Neoprene

Contact type

microswitch with NO and NC contact

Contact life

10 million switches

Switch angle

±45^o

Switching speed

max. 600/min

Process temperature

0^oC to 50^oC

Process pressure

max. 0.1 MPa

Liquid density

min. 0.8 g/cm³

Housing material

non-toxic polypropylene

Protection

IP 68

Cable specification

Ø 9 mm / 3x1.5 mm²

Order Codes

CABLE MATERIAL	CODE
PVC	P
Neopren	N
CABLE LENGTH	CODE
5 m	05
10 m	10
20 m	20
