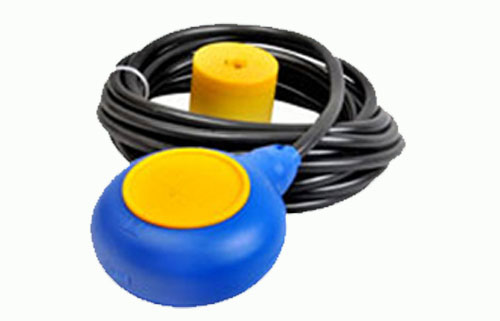

Cable Float Level Switch

Standard cable length (series)0,40; 0,50; 1; 3; 5; 10 and 20 m (other lengths on request)
Allowed Fluid Density0,70 a 1,15
Cut-out power20 (8) A (20 A resistive- 8 A inductive)
Protection indexIP 68
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Cable weightNeoprene 115 g/m - HR HY 110 g/m
Standard cable length (series)0,40; 0,50; 1; 3; 5; 10 and 20 m (other lengths on request)
Float weight without cable105 g
Maximum Temperature85 Degree C
Allowed Fluid Density0,70 a 1,15
Electric Characteristics250 Vac- 50/60 Hz
Biconical shellCopolymer polypropylene
Adjustable ballast on cable (option)Loaded resin 175 g or 250g - Plastic 200g - ecological
Cable Type2 or 3 Conductors 1 Mm2 (with or Without T, According to Versions)
CableNeoprene or HR HY (hypalon) H07RN8-F
Operation modeOmnidirectional
MicroswitchSilver / Cd oxide reverser contacts
Cut-out power20 (8) A (20 A resistive- 8 A inductive)
Protection indexIP 68
Maximum Pressure3,5 Bars
