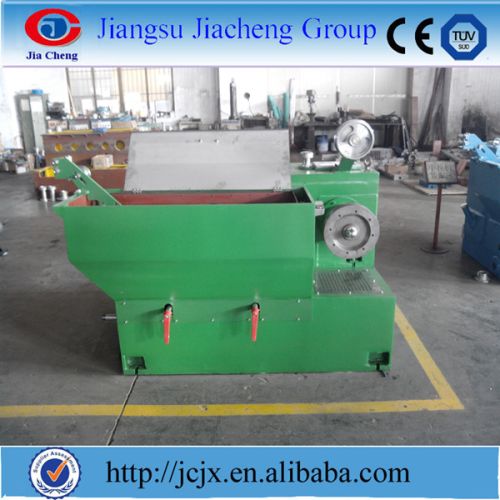

Cable Making Machine

Jcjx-9dh or 13dh intermediate or fine wire drawing machine series
wire & cable condutor drawing machine manufacturer
1. The usage
it is used for drawing the wire (copper wire , aluminum wire, copper alloy , aluminum alloy , stainless steel wire,
low carbon steel wire or others ) 2.5mm-3.5mm to 0.65-2.8mm.
2. The machine list
the process flow
pay-off wire drawing machine tension device ake-up
3.main technical parameter
a, inlet wire dia: 2.5-3.5mm
b, outlet dia.0.65—2.8mm
c, max. Line speed: 2000mmin
d, slip ratio of mc:18%
e,drawing capstan : carbon fiber capstan
f, main motor power:55kw
g,take -up motor :11kw
h, transmission type: by high precision grinding gear
i, lubrication type : full immersion
j, take-up bobbin size: 500630mm or changed by requirement
4. Advantages and after-sell service:
a: advantages
1).jiacheng has some world famous parts suppliers. Have high price performance ratio.
2).special lubrication system for the gears and bearing.
3).second section annealing system, outside electrically neutral (no current flow to other unit)
4).body and other key components and parts are produced by our own factory , quality is reliable.
5). Our company’s developing process in more than 10 years.
B: after-sell service
our company for our machine product, since the shipment date, our company free after sale maintenance service guarantee period is:
(1) 1 year for mechanical part.
(2) 6 month for electrical part.
see what company you will work with:
1.a professional supplier of cable machinery over 23 years.
2.completely production line. From raw material to delivery, all links are under our comtrol.
The quality can be assured.
3.iso9001:2008,ce,tuv and so on.
