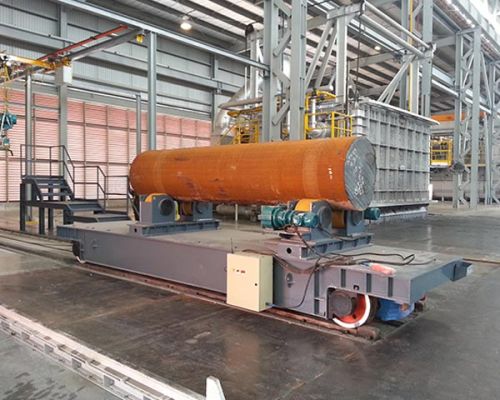

Cable Reel Drum Driven Rail Transfer Cart

We offer cable reel drum driven rail transfer cart.
Product detailed information
working principle AC 380V power source is connected with cable reel at the bottom of the cart by one cable. With the moving of the cart�cable reel lets out and collects cables. Motor and gear reducer are controlled by the electrical system to drive wheels and make the cart start, stop, go forward and backward, speed up and slow down and so on. V-shape rack can be installed on the cart to prevent cylinder materials falling from the cart. Lifting system is composed of a set of hydraulic device. Relying on the transfer cart's power, the lifting control system controls the oil pump motor to work, and oil pump drives multiple oil cylinders to realize synchronous lifting function, thus it can lift cargoes on the transfer cart to any height.
Main parts cart frame, ac motor, gear reducer, sliding wire, wheels, electrical appliance box, alarm lamp, remote controller or hand-held pendant
part of achievements
countries product model quantity unit
thailand rail transfer cart kpdz-16t 2 sets
turkey battery power transfer car kpx-40t 3 sets
mongolia cable power transfer car kpj-30t 2 sets
singapore hoist trolley hb-15t 2 sets
technical parameter
model kpj-63t
rated load 63
table size(mm) 5600*2500*750
wheel base 4300
rail gauge 1435
wheel diameter 600
wheel quantity(pcs) 4
ground clearance 75
running speed 20
motor power 7.5
max wheel load 221.4
reference weight 10.3
recommended rail model p50.
