Contact SupplierWe are offering cable rewinding machine.
stationary device is for rewinding of cable with cross section up to ø 35 mm.

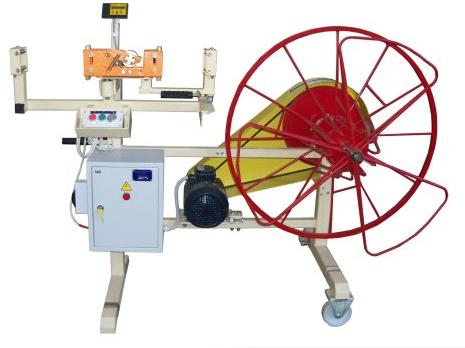

prima-m is a stationary device for rewinding of cable with an external diameter up to 35 mm.
measurement units are equipped with electronic programmable counter solo-e2.
the device is equipped with manual cable-layer. In the modified device, the electric drive with rotation speed control of the main shaft is used, carried out by the frequency converter (made in ukraine).
technical characteristics:
measurement error, not more% ± 1
diameter of the rewinding products max, mm 35
diameter of the formed bundle, max, mm 900
weight of the forming bundle, max, kg 120
electric power, kw 0,75
supply voltage, v (base case) 220
the use of the frequency converter soft start, smooth speed control
electronic counter solo-e2
linear speed of rewinding, max, m min 42
overall dimensions of the device, mm 2000x1200x1600
net weight of the device, kg 80
scope of supply:
unwinding device prima-m - 1 piece.
passport and manual instructions - 1 copy.;
passport and a manual for length counter - 1 copy
