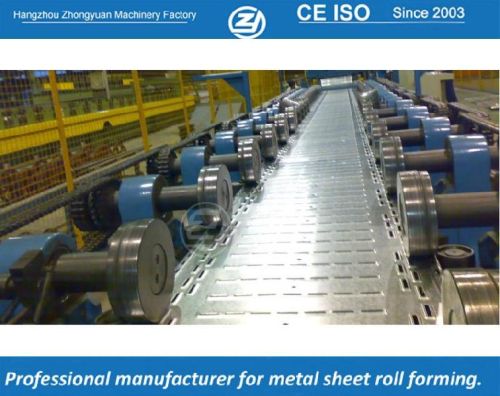

Cable Tray Forming Machine, Brand Name : Zhongyuan

Cable tray forming machine
technical data of cable tray forming machine
suitable raw material q235a galvanized steel sheet; thickness:1.0-1.5mm
forming speed about 8-10mmin.
Production speed about 3mmin.
Material of forming rollers cr12 mould steel being quenched treatment,
material of cutter,punching die cr12 mould steel with quench treatment, hrc58-60
material of shaft high quality 45# steel with heat treatment.roller grinder milling.
Type of cutting after roll-formed and length-set cutting
total motor power about 35kw(depend on final design)
control system mitsubishi plc & converter
zhongyuan machinery factory have rich experience for manufacture cable tray forming machine, sigma forming machine etc. Competitive price and excellent service.
