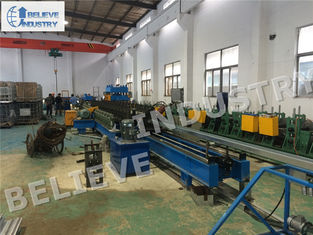

Cable Tray Roll Forming Machine, Brand Name : Believe Industry

₹ 1.27 Cr / Set

MOQ1 Set(s)
Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
Country of OriginJIANG SU
Model NumberC 100-350
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
Country of OriginJIANG SU
Model NumberC 100-350

We are offering cable tray roll forming machine.
Description:
according to specific requirements of customers, we can manufacture cable tray roll forming machines with different specifications. Main components of this machine include decoiler, roll former, cutter, hydraulic pump station, welder, product table, and control cabinet, etc.
technical parameters - cable tray roll forming machine
raw material carbon steel, galvanized steel, q235
material thickness 1.5-2.0mm
material width depend on specific profile
diameter of shaft 76mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 15kw
forming speed 15-30mmin
forming station 25 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
