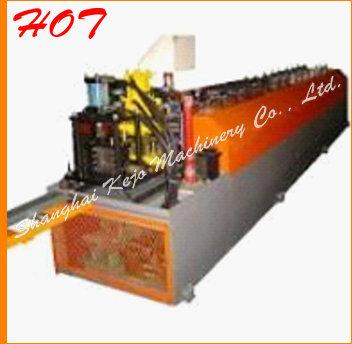

Cable Tray Roll Forming Machine

Detailed product description
ladder type cable tray forming machine:
1.forming processing
uncoiler-flatting-clamp&punchine-positioning cutting-forming-collection
2. Equipment capabilities
1). Width of raw materail : 60mm- 860mm
2). Product speed by punching: 2.5-5m/min
3). Continuous roll forming speed: 10-15m/min
4). Material thickness: 1-2mm
5). Material require: q235 cold roll steel
6). Production line has automatic and manual two operating mode,
may realize the linkage and the partition revolution work.
3. Main composition of machine
this unit consists of the decoiler, ml900 flatting, 200 punch, punching die,
servo feeding, guider, main roll forming machine, follow cutting,
cut-to-length part, electrical control cabinet; etc.
4. Each part major technical parameters
4.1 drive decoiler
1). Material width 860mm
2). Material weight 6000kg
3). Material outer diameter 1200mm
4). Drive power: electromotor and speed reducer integration, 4kw frequency conversion electromotor
5). Frame type: cantalever inner support, manual handle afterbody, pneumatic press cantalever.
4.2 flatting
1) working rolls: 11 rolls, up 4/down 5, the residual 2 rolls is clamp deliver rolls.
2) flatting bound: material thickness 1-2mm, material width 100-860mm
3) drive power: 5.5kw frequency conversion electromotor
4) speed reducer model: zq250
5) flatting speed: 3-10 m/min
6) parenthesis up and down a pair of fortified wheel
4.3 continual punching mould
1. Amount: each kind of width specification 1 set dies, total 6 sets
2. Die require: cr12 quench
4.4 servo feeding
1. Electromotor power: 4.4kw
2. Multistage type feeding, memory ten group of memory functions
3. Man-machine contact surface numerical control system
4. Uses mitsubishi servo meter
4.5 holds material (use in cushion section)
the roller type, the both sides have the bearing support, 3 sets,
use in holding the material and under the deposited material spacing
4.6 guider
a pair of horizontal roller and two pairs of vertical guide rolls, total 1 sets
4.7 main roll forming machine
type
gy180(extra wide)
rack structure
dragon gate type memorial arch frame
forming frame
16 sets
forming variety
bridge frame
material max width
860mm
material max thickness
≤ 2.0mm
forming width
100-900mm
the diameter of the roller axis
85mm
roll mould material
gcr15
quenching treatment
hrc58-62
drive type
30kw frequency conversion electromotor
4.8 hydraulic cutting
1. Hydraulic pumping station: 5.5kw
2. blade material : cr12, quench treatment
4.9 electrical control
4.9.1 main operation control cubicle
1) amount: 1 set
2) frequency conversion: 3 sets(in main control cubicle, control decoiler, flatting and roll forming machine)
3) plc control: 1 set
4)8 inch liquid crystal touch screens
5) all electrical element is the mitsubishi original installation brand
4.9.2 assistant control cubicle
amount: 3 sets (follow decoiler, flatting, roll forming machine)
control type : manual handle
5. After-sale service
1. We see to the equipment's installment, the debugging and free training operators
2. We offer the equipment's details(including the drawing of roll forming mould, electric appliance schematic diagram, equipment diagram and so on)
what's more, equipment can be specially designed and
manufactured at customers' requirements.
fine quality as well as low price.this new product is
to the taste of world market.
products warranty: 12 month, and we will provide
the technical support for the whole life of the equipment.
