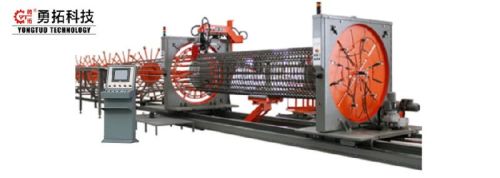

Cage Welding Machine

₹ 44.14 Lakh / Set

MOQ1 Set(s)
model#YTGH1250/1500/2000/2500
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shaanxi YONGTUO Machinery Technology Co., Ltd.

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

YTGH-1250
.Cage pile diameter:: 200-1250mm
.Cage length(m): 12m(customized is acceptable )
.Cage max weight (kg): 6000
.Coil bar diameter(mm): 5-16mm
.Space between coil bar (mm): 50-500mm
.Main bar diameter (mm): 12-40mm
. Average power consumption(kwh):8(kwh)
YTGH-1500
.Cage pile diameter: 300-1500mm
.Cage length(m): 12m(customized is acceptable )
.Cage max weight (kg): 7000
.Coil bar diameter (mm): 5-16mm
.Space between coil bar (mm): 50-500mm
.Main bar diameter (mm): 12-40mm
. Average power consumption (kwh):10(kwh)
YTGH-2000
.Cage pile diameter: 400-2000mm
.Cage length(m): 12m(customized is acceptable )
.Cage max weight (kg): 8000
.Coil bar diameter (mm): 5-16mm
.Space between coil bar (mm): 50-500mm
.Main bar diameter (mm): 12-40mm
.Average power consumption (kwh):12(kwh)
YTGH-2500
.Cage pile diameter: 400-2500mm
.Cage length(m): 12m(customized is acceptable )
.Cage max weight (kg): 10000
.Coil bar diameter (mm): 5-16mm
.Space between coil bar (mm): 50-500mm
.Main bar diameter (mm): 12-40mm
.Average power consumption (kwh):16(kwh)
