Electric Automatic Calibration Test Bench, Color : Black

Instrument Calibration Test Bench

Test Bench Size :1600X1000X1460 mm (LBH)

·        The bench top panel is constructed with 19 mm thick chip board suitably laminated

·        The front plates are fixed with top and bottom profile run throughout the panel length.

·        All the instruments of different sizes and weights are duly mounted in the panel with good mounting base plates, fixtures as required with suitable cut outs for easy frontal operations.

·        For others like switch, socket, MCB, etc. are mounted or fixed by fixtures as required with making suitable cut outs for easy frontal operations.

·        The electrical wiring is done as per the standard practice by using quality wires, crimping legs and proper ferruling for easy identifications and troubleshooting in the future.

·        The pneumatic tubing is made by using SS material depending upon the pressure rating.

·        Back of the panel are made up of 19 mm chip board with inserted perforated mild steel ventilator arrangement with hinge, lock and key.

·        The back doors are easily openable for cleaning and fault finding or any other service requirements.

Under Bench Cabinet

·        Trolley Type

·        Storage space with lockable drawers - 2 nos., cupboard - 3 nos. for keeping necessary stationary items / tools and tackle, etc

Single Phase Variable AC Power Supply

·        Miniature Circuit Breaker (for operators’ safety)

·        Voltmeter*

·        Ammeter*

·         Socket

·        Variable autotransformer (fully enclosed and kept inside the benchtop panel)

DC Power Supply able to measure Voltage and Current

·        Variable Output Range: 0 to 30 V DC

·        Variable Current Range: 0 to 5 A

·         Power Supply: 230 VAC, 50 Hz

Digital Multi meter (FLUKE 8846A (6-1/2 DIGIT Precision multi meter)

Digital multi-meter

·        6.5-digit multi-meter

·        Measurements of AC/DC voltage and Current, Resistance, Capacitance, Frequency with audible continuity test facility

·         Power Supply: 230 VAC, 50 Hz

·        On- off switch with illumination

·         Power Supply prewired 5 VDC / 1 A Adaptor

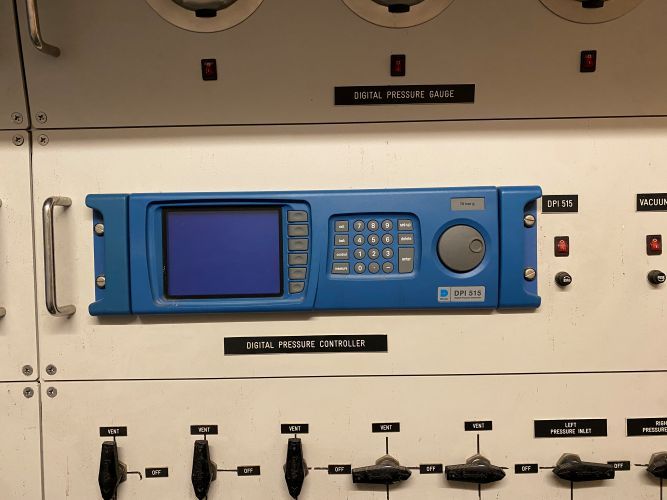

Digital Pressure Controller DPI 515 (70bar g)

3X Digital Test Gauge range below (Crystal Engineering Corporation)

·        Pressure gauge: 0 to 70 Bar g

·        Pressure Regulator

·        Output port through quick connectors

·        Input connected from the front side of the panel

1 Bar ,20 Bar,70 Bar

Vacuum Pump (GAST)

Model -0523-V3-G588DX

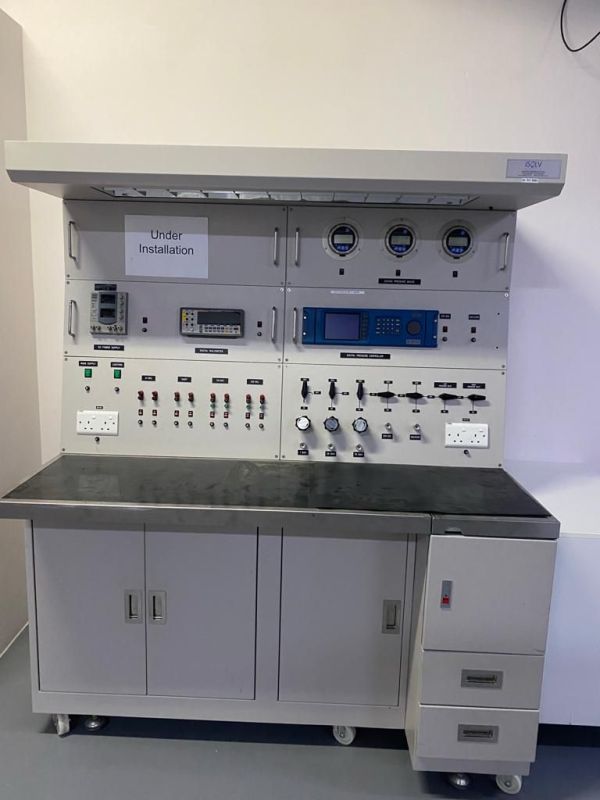

Front View and Back view of Calibration Test Bench
