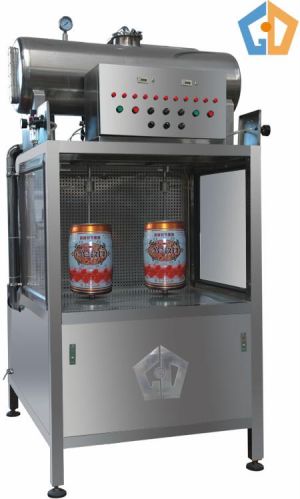

Cans Aseptic Filling Machine, Brand Name : GD

We are offering cans aseptic filling machine.
1. the main framewor
the machine invludes frame , the elevtrical control system , solenoid pilot actuated value , pneumatic componets , membrane filter fan , ultravidet lamp , systems back to components .
2. characteristics
this machine is specially used for filling 5l pop can .
The control unit adopts siemens small plc for controlling the whole process .
This machine can be used aseptic filling in the condition sterilized by ultravidet lamp .
The machine fills the barrel in the way of vacumm-pumping and co2 pressure preparation .
3. main technical parameter
size of plate form
960mm×800mm
height of plate form
800mm
size of the machine
1000mm×1300mm×1530mm
production capacity
50 ~ 70 keg per hour
pressure of the
0.2------0.3mpa
p ressure of the air
0.6------0.7 mpa
pressure of the co2
0.2------0.3 mpa
pressure of the cylinder
0.3------0.5 mpa
voltage of the electricity
ac220v 50hz
