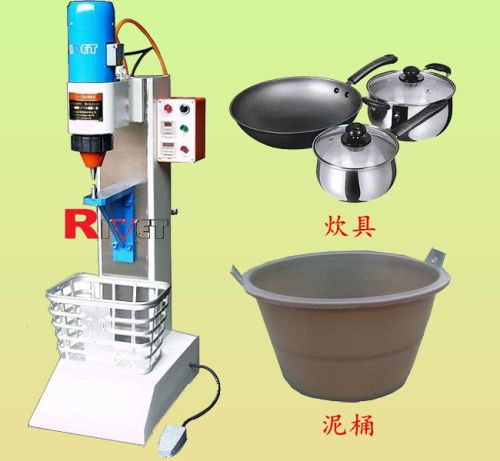

Cantilever Riveting Machine, Power : 0.92Kw

We are offering cantilever riveting machine.
Jm9-cantilelver riveting machine
characteristics:
■workbench by cantilever
■power head fixed or movable as optional
■suitable the special requirement of throat depth
■hydraulic or pneumatic as optional
■pressure display and adjustable
■rotary part protected
■can obligate the mouth for fixture
■cantilever bench fixed
■display both riveting time and riveting pieces
■manual and automatic functions
■smooth and clean after processed
■stable withou shaking during processing
■customize variety parameter available specification:
▲max riveting diameter ф 9mm ( solid steel rivet )
▲max riveting pressure 14kn
▲stroke length range 30mm
▲working space customized
▲throat depth 125mm
▲riveting tool length 50mm
▲eccentric angle 4°
▲motive force hydraulic
▲area of the table surface narrow support
▲power 0.92kw
▲physical size 700mm×500mm×1417mm
▲net weight 250kg
