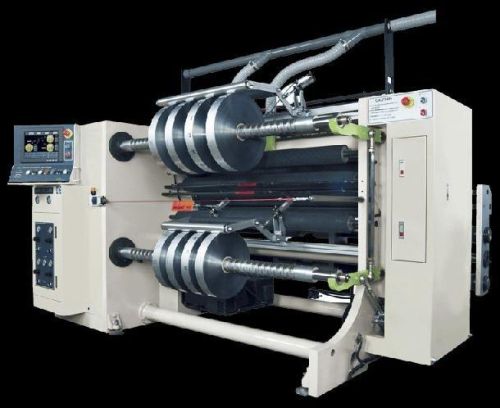

CANTILEVER SLITTING MACHINE

Get Latest Price

RewinderDifferential Pneumatic Ball Screw
Automation2 Drive + Pn, 3 Drive + Pn, 4 Drive
MaterialsPolyester, Laminates, BOPP, LDPE, FOIL etc.
Unwind Diameter1000mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

MSC

Makarpura, Vadodara, Gujarat

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Rewind Diameter450
Unwind Diameter1000mm
Automation2 Drive + Pn, 3 Drive + Pn, 4 Drive
Min Slitting Width10mm/50mm
RewinderDifferential Pneumatic Ball Screw
UnwinderShafted/Shaftless
MaterialsPolyester, Laminates, BOPP, LDPE, FOIL etc.
Line Guide SystemPhotocell
Layon RollerPneumatically
Max working WidthUp to 1500mm
M/C Speed100/350/450 MPM

The MSC duplex shaft Slitter Rewinder is a Canti lever type which incorporates a range of superior design feature that ensure the highest possible quality for the final split roll

Independent rewind tension control through non contactultra sonic techniques for diameter measurement and unique core lock for differential slip at running speed.

The design incorporate the Three motor control system & unwind pneumatic brake with load cell feed back.Digital Edge/line guiding to achieve high speed correction.

Shaft less unwinder with 3” & 6” core facility with Up – Down & Clamp-Dclamp feature Which will be controlled by AC motor.

One full width capacity hard chrome plated steel roller of 150mm diameter. One full width capacity rubber roller of 150 mm diameter. Pressure is Pneumatically applied from the operation side of the machine.

Duplex Cantilever Differential Winding. with pneumatic pressure to maintain slip edge of rewind roll through digital E/P converter with indicator and Ultra-sonic sensor to maintain rewind dia Quick lock unit for rewinding \pneumatically controlled lay on roller operator friendly remote control panel provided at rewind for electrical and pneumatic system. Both Re winder will be controlled by individual ac motor with common feedback of ultrasonic sensor.

(1) Max working Width : 800/ 1600
(2) Unwind dia:1000mm
(3) Rewind dia:500
(4) 4 Drive SIEMENS based system
(5) Web guiding system (Digital Ultra Sonic)
(6) Differential ball shaft pneumatically control for rewind shaft

- Calulative Designed, Strong & heavy duty mild steel structure.

- 4 Drive System for Synchronized Unwinder, Main drive & both Rewinders.

- Touch Screen Panel for easy & smart operating.

- Minimum Wastage & minimum dependency on labour due to increased automation and easy operating system.

- Cork Coated, Dynamically balanced, Specially designed low friction idler rollers made of alluminium alloy, mounted on low friction bearing.

- Digital Web Line Guiding System.

- High Performance Differential Winding Shafts.

- The System Consist of AC digital Drive, load cell for feed back, Ultrasomic Sensor etc.

- Each rewinder equipped with pneumatically loaded on assembly with contact pressure control.

- Shaftless System for unwinder (Optional).

- Laser Light System at Rewinder for easy to loading Paper Core.
