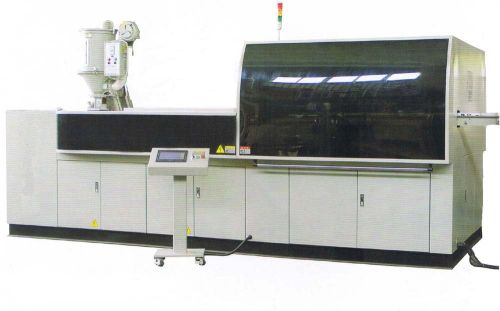

Cap Compression Molding Machine

The machine makes soda and mineral water bottle caps from granular plastic raw material which is fed via the hopper, fluidized with high temperature, and then forms die block that is extruded from the discharge outlet of the extruder, cut with the cutting tray, uniformly distributed into each die cavity and finally mold pressed. Bottle caps made through this technique features superior internal face quality and beautiful appearance, and are free from injection point and flow waste.
　　This machine, characterized by easy operation and economy in electricity, water, raw material and labor power, increases its output by three times compared with other plastic injection molding machines with the same power consumption. Automatic temperature control devices and a speed matching system of the extruder and the molding machine are installed to optimize the temperature of molds and materials, which makes the machine durable and stable. Its successful development is a major breakthrough in the bottle cap manufacture industry. What’s more, it has been patented nationally (Patent No.) and is one of the first generation of new independently-developed products.
Cap diameter 25mm-50mm
Productivity 280 thousand to 350 thousand/day
Max. cap height 25MM
Number of cavities 24cavities
Working press 1000N/min
Total power 22KW
Absorbed electrical power 15KW
Size(L X W X H) 3800*1600*2580 mm
Weight 5T+600KG
Voltage 440/380/220v
The machine can produce the smallest cap from 25mm
to the largest cap 50mm. And daily output 280000-500000pcs
We also can provide 36Cavities machine/48Cavities machine and Cap Mould/ Cap lining machine/Cap Printing machine.
