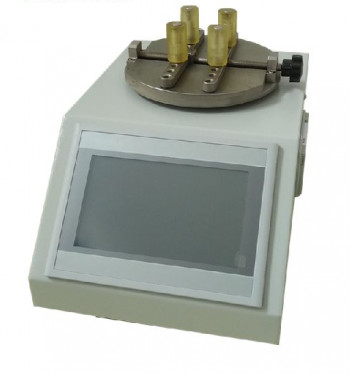

Cap Torque Tester, Brand Name : Cell Instruments

Cap torque tester can determine the proper lock and open force of caps in production and thus guide the transportation and consumption process by measuring the open force and lock force of the caps of medicine bottles, pet bottles, spout bags and flexible tube packages.
Features
1. plc control unit and touch screen operation
2. both locking and opening force can be measured
3. peak value auto keeping
4. micro printer for easy data recording
5. rs232 port and professional computer software (optional)
6. overload protection, auto zeroing function
technical data
test range: 10 nm
accuracy: 1% fs
resolution: 0.001 nm
clamp range: φ5mm～φ170mm
dimension: 240×350×270 mm
weight: 19 kg
standards
astm d 2063, astm d3198, astm d3474, gbt17876, bbt0025, bbt0034
