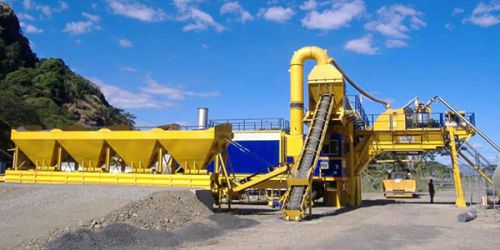

CAP80 Asphalt Drum Mixing Plant

Cap80 asphalt drum mixing plant is a continuous mixing plant in which the aggregate heating, mixing and addition of bitumen and filler are done in the drum itself. The hot mix asphalt will be loaded continuously into a truck or conveyed to a storage silo with liner to prevent heat loss.
Model: cap 80
capacity: 80th
drying & mixing drum: φ1600x9000mm
aggregate bin: 4x6.5m3
fuel consumption: 6.5~7.5kgt
measurement accuracy hot aggregate: ±1%; filler: ±0.5%
aggregate size ≤25mm
aggregate gravity ≥1600kgm3
aggregate moisture ≤5%
hot aggregate temperature: ≤160℃
hot asphalt temperature: 130~165℃ (±5℃)
air emission: ≤100mgnm3
working noise: ≤70db(a)
operation: full automanual
installation power: 175kw (380v-50hz)
voltage: 220v380v-50hz
plant covering area: length: 35m, width: 25m
