Contact SupplierOutput*: | Measuring Range: |
---|---|

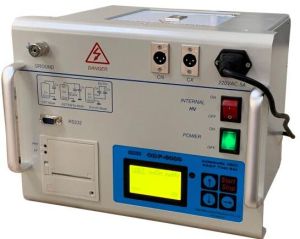

Test voltage: 0.5 ~ 12 kV, user-selectable The output test voltage tolerance of the CDF-6000 is +1% of the selectedtest voltage and remains stable along the duration of the test, un-affected by line or input voltage fluctuations.Test current: 200 mA maximum |
Test capacitance range @ 50 Hz / 60Hz. • Internal power supply 200 mA max. 3pF ~ 0.05µF @ 12kV 60pF ~ 1µF @ 0.5kV • External power supply, 5A max. 3pF ~1.25µF@12kV • Resolution: 0.001pF, 4 digits |
* If higher than 12 kV test voltage, higher current or extended test capacitance is desired, the CDF-6000 allows interface with an external power supply and external reference capacitor while using its bridge circuit to take measurements and output results. | Tan δ range: 0 ~100%, resolution .001% Voltage: 0~12kV Current: 10µA~5A Also displays the phase angle, frequency, watts loss, insulation power factor or tan delta, resistance (in the case of resistive specimens), inductance and quality factor (in the case of inductive specimens). |
Accuracy: | |
Capacitance: +1% of reading + 1pF Tan : +1% of reading +.00040 Voltage: +1% of reading. |
