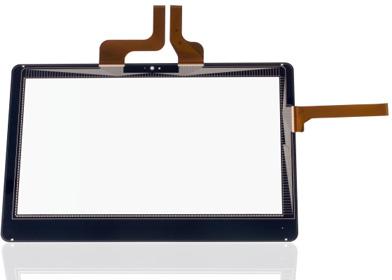

Capacitive Touch Screen

We are offering capacitive touch screen.
topland can supply 32” and smaller custom designed capacitive touch screen and resistive touch screen. 1.5" to 26" capacitive touch screen have been successfully developed and produced. The main structure is g+g and g+f. Single-touch & multi-touch for customer’s option. It can support 10 fingers,swipe, page turning or other functions.
item no. ts-tian02-531298-24
type projected capacitive multi-touch
structure
glass/film(ito glass with chemical enhanced)
outline dimensions 579.32*368.90*2.13mm
view area 531.38*298.90mm
active area 531.38*298.90mm
tp size (inch, diagonal) 24
interface usb or i²c
connector fpc
input method finger or exclusive pen
operation voltage 5v
transmittance 89±2%
operation temperature -10℃～60℃
operation humidity 20%～90%rh
storage temperature -15℃～65℃
storage humidity 10%～90%rh
surface hardness ≥7h
hitting life 50,000,000 times
certification rohs, reach, pth, pahs, np
