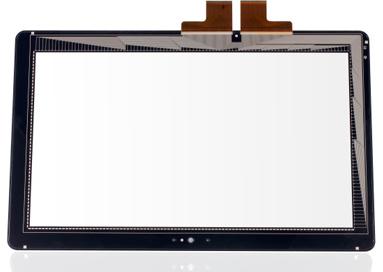

Capacitive Touch Screen

We are offering capacitive touch screen.
topland can supply 32ã¢ï¿½ï¿½ and smaller custom designed capacitive touch screen and resistive touch screen. 1.5" to 26" capacitive touch screen have been successfully developed and produced. The main structure is g+g and g+f. Single-touch & multi-touch for customerã¢ï¿½ï¿½s option. It can support 10 fingers,swipe, page turning or other functions.
item no. ts-tian02-476268-21.5
type projected capacitive multi-touch
structure
glass/film(ito glass with chemical enhanced)
outline dimensions 542.60*339.20*2.13mm
view area 476.64*268.11mm
active area 476.64*268.11mm
tp size (inch, diagonal) 21.5
interface usb
connector fpc
input method finger or exclusive pen
operation voltage 5v
transmittance 89ã¢â±2%
operation temper -10ã¢ï¿½ï¿½ã¯â½ï¿½60ã¢ï¿½ï¿½
operation humidity 20%ã¯â½ï¿½90%rh
storage temperature -15ã¢ï¿½ï¿½ã¯â½ï¿½65ã¢ï¿½ï¿½
storage humidity 10%ã¯â½ï¿½90%rh
surface hardness ã¢ï¿½â¥7h
hitting life 50,000,000 times
certification rohs, reach, pth, pahs, np.
