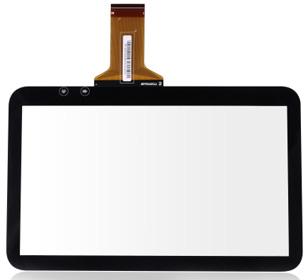

Capacitive Touch Screen

We are offering 14'' capacitive touch screen.
topland can supply 232'' and smaller custom designed capacitive touch screen and resistive touch screen. 1.5" to 26" capacitive touch screen have been successfully developed and produced. The main structure is g+g and g+f. Single-touch & multi-touch for customers' option. It can support 10 fingers,swipe, page turning or other functions.
item no. ts-tian02-310174-14
type projected capacitive multi-touch
structure
glass/film(ito glass with chemical enhanced)
outline dimensions 342.57*216.00*2.13mm
view area 310.40*174.05mm
active area 310.40*174.05mm
tp size (inch, diagonal) 14
interface usb
connector fpc
input method finger or exclusive pen
operation voltage 5v
transmittance 89%±2%
operation temperature -10c~60c
operation humidity 20%~90%rh
storage temperature -15c~65c
storage humidity 10%~90%rh
surface hardness >=7h
hitting life 50,000,000 times
certification rohs, reach, pth, pahs, np.
