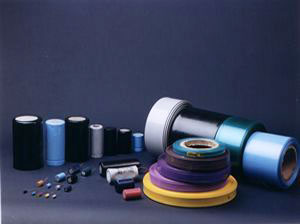

Capacitor Grade CP 200 Sleeves

Sold By : Precision Tools

Product Specifications

Dielectric Strength6 KV at 0.10 MM thickness
Standard ColorBlue Gray, Black, Violet, and Green
Tensile Strength300 kg / Sq. Cm.
Sizes AvailableFor dia. from 4.00 to 150.00 mm
Fire RetardationSelf extinguishing, Non flammable
Tear Strength75 kg / Cm.
Supply TypeSupplier

Preferred Buyer From : All over the world

Product Overview

"Shrinkin'Sleeves" provide good insulation assuring quality and offer a high degree of impact resistance protecting the capacitor from breakage during rough uses.

Physical & Electrical Properties

Water Absorption : Less than 0.70 %
Heat Resistance : 105o C for 1000 Hrs continuous
Shrink Ratio : MD 10 %; TD 40 %.
Type : Creased Type

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Manufacturer Of Bus Bar Sleeves, Dry Cell Battery Db 600 Sleeves, Refrigerator Grade Rg 500 Sleeves, Capacitor Grade CP 200 Sleeves, Dry Cell Battery Sleeve, PVC Heat Shrink Sleeves, Capacitor Grade, Refrigerator Grade Sleeve Rg 500, Dry Cell Battery Grade, Cable Lug Grade Cl 700 Sleeves, Container Grade CT 400 Sleeves, Cable Terminal Ends Sleeves, Cable Lug - (cl 700), Dry Cell Batteries, Cap Seal Grade Cs 300 Sleeves.
