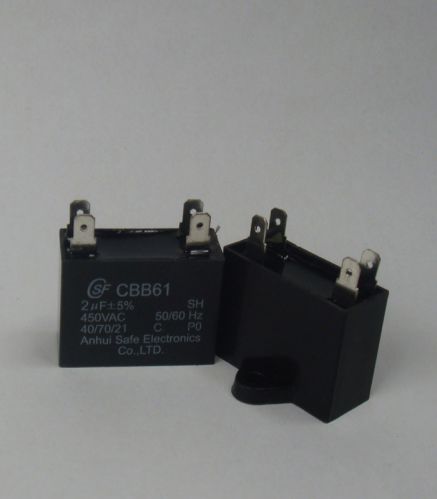

Capacitor

CBB motor capacitor for voltage regulation current part of air conditioner,washing machine,refrigerator,air compressor,fan...etc
CBB power capacitor is specially for air conditioner,refrigerator.The capacitor is with explode-proof,structure,applicable to 50Hz/60Hz start and operation in air conditioner,refrigerator etc.
Service Conditions
1.Altitude: The altitude of area of installation and operation not exceeding 2000m.
2.Residual voltage at energization : Not to exceed 10% rated voltage.
3.Pollution: No electric dust, no corrosive gas or inflammable and explosive medium in the area of installation and operation.
4.Operation temperature: Between -40 and +70
5.Operation way: Continuous operation.
Main Technical indexes:
1.Rated voltage: 200VAC,250VAC,370VAC,400VAC,440VAC,450VAC.
2.Rated frequency: 50Hz(60Hz).
3.Rated capacitance: Between 1uF and 100uF
4.Withstand AC voltage between terminals: 1.75 times rated voltage for 2 seconds.
5.Withstand AC voltage between terminal and case: 2000VAC for 2 seconds.
6.Capacitance tolerance: Cn±10%.
7.Tangent of loss angle(tg): tg
