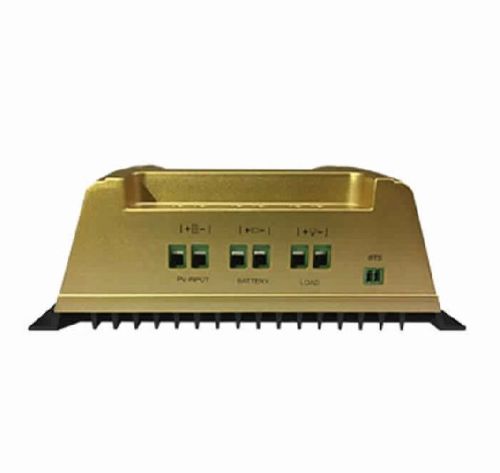

Capsol Solar Charge Controller (MPPT )

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Model : CCH-20A CCH-30A12/24V Voc 18-100V Heatsink Cooling CCH MPPT Solar charge controller is an advanced maximum power point tracking(MPPT) battery charger for off grid photovoltaic system up to....

View More Details

Send Enquiry

Company Information

Capsol Solar Energy Systems and Trading Llc

Dubai

View Number

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model : CCH-20A CCH-30A
12/24V Voc 18-100V Heatsink Cooling

CCH MPPT Solar charge controller is an advanced maximum power point tracking(MPPT) battery charger for off grid photovoltaic system up to 50KW. Models ranging from 20A-100A(12V/24V/36/48V) , over 15 models available,including the economic fan cooling design version and high performance heatsink cooling version.Solar charge controller is mainly used for solar power station, home solar power system,solar street light control system,mobile solar power system

Features

12V/24V/46V/48V Auto work,parallel design

~Multi-stage charging optimizes battery performance

~MPPT eficiency >99.5%, Peak conversion efficiency 97.5%

~Compatible with Gel. AGM.Flooded. Sealed lead acid and Lithium battery

~Comprehensive protection

~Dual fan cooling design

~Comfortable installation and commissioning

~Monitoring your solar harvest on line via RS485 communition, Ethernet/RS232 communication Optional

Model	CCH-20A	CCH-30A
Solar System Voltage	12V/24V Auto work
Electrical
PV Operating Voltage	18～100Vdc@12V 35～100Vdc@24V
Max. PV input power	12V 300W	12V 400W
	24V 600W	24V 800W
Rated input current	20A	30A
Rated DC load current	30A
Self consumption	2W
Max.Conversion Efficiency	97.5%
Protection	PV array short circuit, over charging,battery reverse polarity,output short circuit
Battery charging
Battery Type	Sealed Gel AGM Flooded Lithium Battery
Charge algorithm	3 stage: Bulk, Absorption, Floatcharging
Bulk charge voltage	Sealed: 14.4V AGM 14.2V Gel:14.2V Flooded:14.6V User defined:10-15V
Float charge voltage	Sealed/Gel/AGM:13.8V Flooded:13.7V User defined:10-15V
Equalize charge voltage	Sealed 14.6V AGM:14.8V Flooded:14.9V
Load disconnect voltage	10.5V ～12V Adjustable
Low voltage reconnect voltage	12.5V
Temperature compensation	5mV/℃/2V with BTS
Physical
Net weight	1.4kg	1.6kg
Gross weight	1.8kg	1.9kg
Dimension	15016080MM	170160180MM
Cooling	Heatsink cooling
Enclosure	IP21
Environment
Ambient operating temperature	-25℃～60℃
Storage Temperature	-40℃～80℃
Humidity	100% non-condensing
Warranty	Two years
