Electric autal maxisys ms909 scanner, Certification : CE Certified, Feature : Easy To Operate

Listing ID #6574317

3.10 Lakh / pieces

Get Latest Price

MOQ 1 Piece
CertificationCE Certified
ApplicationScanning Use
Weight0-100KG
ColorBlack
Supply Type Supplier, Retailer, Distributor, Importer, Trader

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Certification CE Certified
Application Scanning Use
Weight 0-100KG
Color Black
Feature Easy To Operate
Voltage 220V
Condition New
Machine Type Digital
Driven Type Electric
Warranty 1yr
Brand Name AUTAL
Products Status ONLINE
Operating System Android 10.0
Connectivity Dual Wi-Fi(802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Country of Origin CHINA
Type Car Scanner
service reset 26
relevent cases dtc trobulshooting
automatic detection scanvin/auto-vin/auto-scan
Power and Battery 15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Operating Temperature 0 to 50°C (32 to 122°F)
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte,
Model No MS909
Dimensions(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Audio Input/Output Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Storage Temperature -20 to 60°C (-4 to 140°F)
Processor Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
COLOUR SCREEN 9.7 INCH TOUCH SCREEN
PROCESSOR 2.3GHz+1.7GHz
update 2year
Input Voltage 12V/1.3A Adapter
Memory 4GB RAM & 128GB On-board Memory
VEHICLE CONNECTION MAXIFLASH VCI
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
warrenty 1 year
vehicle support passanger + light duty
Camera Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel

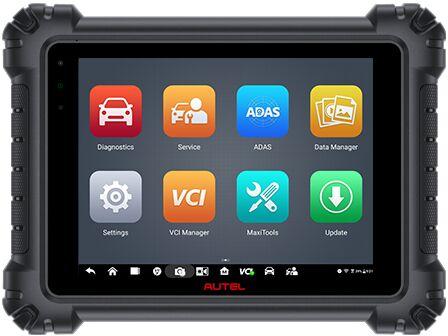

MaxiSYS MS909

MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery providing 8 hours of continues use, and front and rear cameras.

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

• Automatic system and software updates with real-time push message notifications via internet

• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize

• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi(802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Additional Information

Port of Dispatch RAIPUR
Packaging Details box
Delivery Time 1-2DAYS
