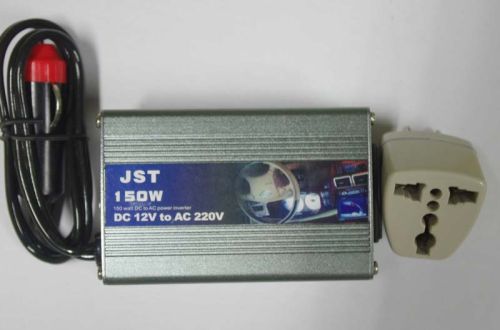

Car Power Inverter, Brand Name : JST, Input Voltage : 10.5V-14.5DC

We are offering Car Power Inverter.
Model 12V 150W
Working condition Put the product in the dry, ventilated and cool place. Keep the product away from water or rain.
Working Temperature 14°F~ 140°F ( -10℃~ +60℃)
Input Voltage range DC 10.5V-14.5V
No-load current 0.2A
Output Voltage range 200V-235VAC
Frequency 50±2 Hz
Waveform Square Wave
Maximum power
150W
Peak power 300W
Protection Undervoltage alarm 10V
Over-voltage alarm
15V
Protection temperature 167°F (75℃)
Package Machine Size 97*64*38mm
Net weight 300g
Packing Box Dimensions 140*107*45mm
Packing Carton Dimensions 630*340*340mm
Packing quantity
88pcs
Other Start Soft Start
Cooling Ways Cooling Fan
Certification CE
Fuse 20A
Instructions for 12V150W Car Power Inverter:
1. Working condition:
Put the product in the dry, ventilated and cool place. Keep the product away from water or rain.
Working(operating) temperature: 14°F-140°F ( -10℃-+60℃)
How to use:
1. Insert the inverter cigar head into lighter socket of car. Please ensure that the inverter cigar head is connected well.
2. Please ensure that the electric appliance power is below nominal power of the power inverter. Insert the 220V plug of electric appliance into power inverter 220V socket. Then turn on change-over switch. If the green indicator light is lit, it shows that the power inverter works well. If the light is not lit, check power inverter protection due to overvoltage, low-voltage, overload or over-temperature.
