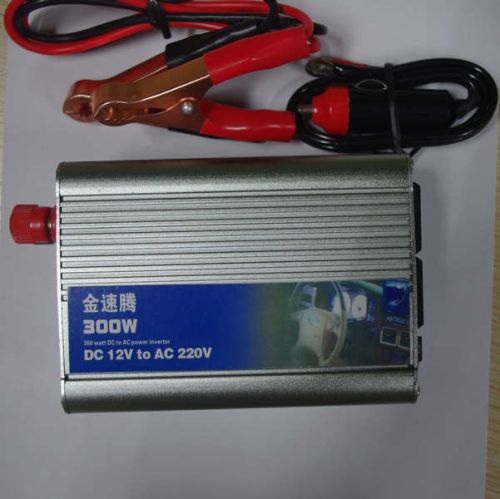

Car Power Inverter, Brand Name : JST, Certification : CE

We are offering car power inverter.
instructions for 12v300w car power inverter:
model
12v 300w
working condition put the product in the dry, ventilated and cool place. Keep the product away from water or rain.
working temperature 14°f~ 140°f ( -10℃~ +60℃)
input voltage range dc 10.5v-14.5v
no-load current 0.2a
output voltage range 200v-235vac
frequency 50±2 hz
waveform square wave
maximum power 260w
peak power 600w
protection undervoltage alarm 10v
over-voltage alarm 15v
protection temperature 167°f (75℃)
package machine size 130*90.5*55mm
net weight 580g
packing box dimensions 162*162*61mm
packing carton dimensions 630*340*340mm
packing quantity 40pcs
other start soft start
cooling ways cooling fan
certification ce
external fuse 40a
how to use:
1. Turn off the inverter switching. Insert the inverter cigar head into lighter socket of car. Please ensure that the inverter cigar head is connected well.
2. Please ensure that the electric appliance power is below nominal power of the power inverter. Insert the 220v plug of electric appliance into power inverter 220v socket. Then turn on change-over switch. If the green indicator light is lit, it shows that the power inverter works well. If the red indicator light is lit, check power inverter protection due to overvoltage, low-voltage, overload or over-temperature.
3. The cooling fan will work automatically when the inverter output power is more than 50w. If less 50w, the cooling fan will not work.
4. If the anode and cathode random connection of inverter happens, the inverter will not work normally. At this time, please remove the fuse. Displace it with another fuse. Then the inverter can work normally.
