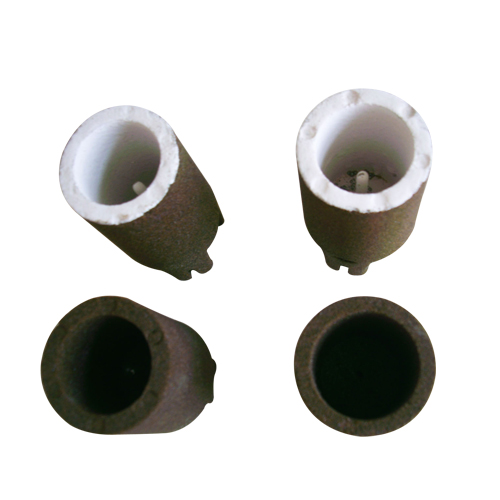

Carbon Equivalent Meter Cup

Stationed in Shanghai(China), our organization is one of the prime most providers in the industry today. We make sure that the products we offer to our clients will remain free from any kind of damage. Thus, we store the entire lot under secured environment in our capacious warehouse.

Details :

• Carbon Equivalent Meter Cup (Thermal Analysis Cup) for Casting Industry Analysis Thermal Analysis cup composition
• Resin bonded sand - Sand (SiO2 >94% and Silt content < 0.3%) - Thermoplastic phenol resin 6-10% of sand - Urotropine (resin hardener) 10-15% of resin
• Tellurium grains
• Silica coating
• K- type thermocouple tube Production Well-graded and clean sand, thermoplastic phenol resin and Urotropine (resin hardener) are dry mixed at the temperature of 500 degree Celsius to produce  resin bonded sand . This resin bonded sand is shot into the pre-heated mold with having the K-type thermocouple tube inside.
• At the temperature of 250degree Celsius, the cup is formed by the resin bond. This cup is coated inside with silica for being thermal insulation and then filled in the cup with 15 gram of Tellurium. By means of drying this coated cup at the temperature of 80 degree Celsius for 4 hours, the carbon cup is ready for the casting control.

Application : The expendable carbon cup (thermal analysis cup) is for determining the Carbon equivalent, % Carbon and % Silicon in molten iron by using the principle of thermal analysis.
The advantages of this carbon cup are as follows :

• With Tellurium grain, the complete white iron solidification can be met
• Fast thermocouple response
• Precisely measuring the temperature of melting iron sample
• Provide uniform cooling curve
• High accuracy of the content of Carbon and Silicon
• Improve the casting process control
