Carbon Fiber Fabric

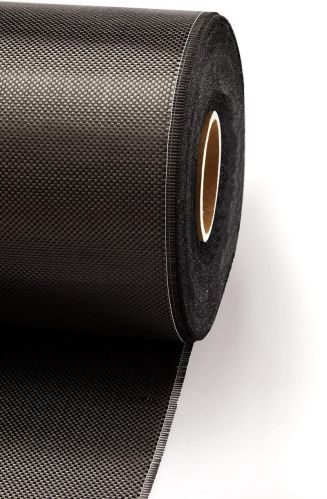

Carbon fiber fabric
carbon fiber fabric is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Lintex's carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins. It is widely used as the basic material for aerospace, defence, leisure, automotive products, industry and the medical sector as well as other applications includes building construction repair and strengthening.
General data
• weaving style: unidirectional, plain, twill
• input available: 3k, 6k, 12k carbon fiber
• weight: 15 0 ~ 600g / m2
• roll length: to be specified
typical range
product code density (g/m2) input tex fabric count (ends/10cm ) tensile strength(mpa) tesile modulus(gpa)
warp weft warp weft
cwp200 200 3k 3k 50 50
cwt200 200 3k 3k 50 50
cwu200 200 12k ≥ 3500 ≥ 230
cwu300 300 12k ≥ 3500 ≥ 230
remark :
1. the above parameters are only in common condition.in case of order, the parameters are subject to the customer's confirmation.
2. cwp : carbon plain weave fabric
3. cwt : carbon twill weave fabric
4. cwu : carbon woven unidirectional fabric
packaging
product is manufactured in form of a roll wound on a paper tube and then packed in a plastic film and placed within a cardboard carton. Rolls can be loaded into a container directly or on pallets.
Storage
it is recommended that the carbon fiber fabric are stored in a cool and dry environment. Recommended temperature range of storage is between 10 ~ 30 °c and relative humidity between 50 ~ 75%.
The carbon fiber fabric should remain in the packaging until just prior to use.
