Cardboard Labeling Machine, Brand Name : LONGER

We offer Cardboard Labeling, Acrylic Foil Labeling Machine, Plastic Film Labeling Machine, Ceramic Labeling Machine.

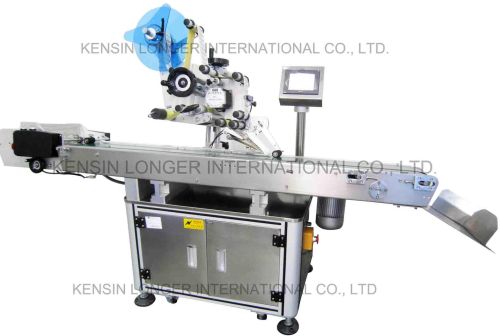

Automatic Card Labeling Machine
Model: KL21400
Application
◆ application label：Adhesive labels, adhesive film, electronic supervision
code, bar code, etc.
◆ application product：request for plane surface, cambered surface labeling
tag or film products.
◆ Application industry: widely used in the electronics, hardware, plastic
rubber, chemical etc.
◆ Application case: cardboard labeling, acrylic foil labeling, large pieces of
plastic film labeling, ceramic pieces labeling etc.
Specification:
Model KL21400 (card labeling)
Label length 6-250mm
Label width 15-125mm
Application product size L: 60mm-280mm; W:20mm-200mm; Thickness:0.2mm-
2mm
Precision ±1mm
Labeling speed 40-150pcsmin(step) 19mmin(step)
50-200pcsmin(servo) 25mmin(servo)
Conveyor speed 5-19mmin(step); 5-25mmin(servo)
Label paper core outer diameter ≤Φ280mm
Label paper core inner diameter Φ76mm
Power 220V 50Hz
500W(conveyor adjusted + traction step)
950W(conveyor adjusted + traction servo)
780W(conveyor frequency + traction step)
1170W(conveyor frequency + traction step)
Weight 180kg
Dimension 2200x700x1400mm
