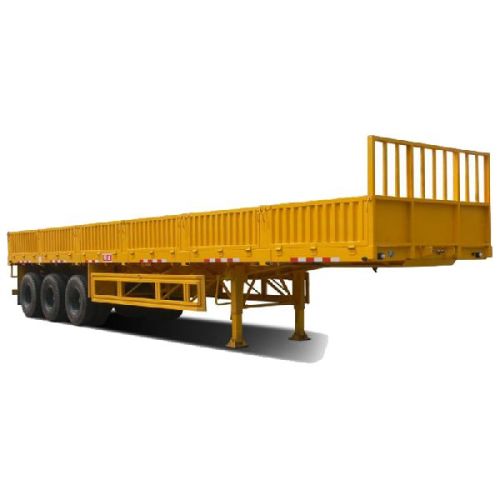

Cargo Transportation Side Wall Truck Trailer

Product name 3 axles side trailer
overall dimension
(lx w x h)(mm) 12500*2500*2700
tare weight(kg) 7500
loading weight( kg) 40000-60000
axle brand axle brand
axle number three
suspension system common mechanical suspension
steel spring 101010 leaf spring suspension
the material of main beam the height of the beam is 500mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm.
Platform plate 3mm diamond plate
container twist locker 12pcs container lock
tire type and quantity 12r22.5  12units
traction pin 50mm or 90mm
spare wheel bracket 2 pieces
tool box 1 standard
landing gear 28ton
brake system dual line braking system
brake air chamber six big chamber
electrical system voltage: 24v
receptacle: 7 ways (7 wire harness)
side guard tail lamp with turn signal, brake light & reflector, side lamp etc.
  one set 6-core standard cable.
  600mm or 800mm detachable sidewall
painting optional
packing nude, polish with wax before shipping
