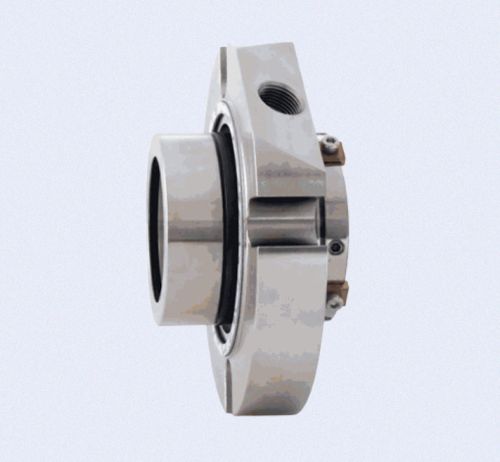

Polished Cold Rolled Steel Cartex ANSI Single Seals, Shape : Round

MOQ10 Piece
MaterialCold Rolled Steel
FinishingPolished
SpecialitiesSingle seal, Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers, Cartridge, Balanced, Independent of direction of rotation, Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or thr
ShapeRound
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

MaterialCold Rolled Steel
FinishingPolished
ShapeRound
Number Of FlowerIndustrial Seals
Country of OriginIndia
SpecialitiesSingle seal, Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers, Cartridge, Balanced, Independent of direction of rotation, Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or thr
Operating rangeCartex-ASPN, - ABPN, -ASTN, -ABTN, -ASQN, -ABQN, Shaft diameter: d1 = 1.000" ... 3.750", Other size
AdvantagesIdeal for use in ANSI process pumps, Universal applicable for packings conversions, retrofits or ori

Materials

Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
Seat: Silicon carbide (Q1)
Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
Springs: Hastelloy® C-4 (M)
Metal parts: CrNiMo steel (G)

Recommended applications
