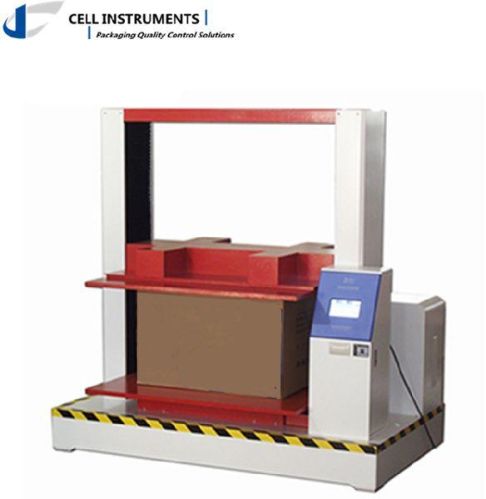

Carton Compressive Force Tester

Carton compressive force tester measures the the compression strength and stacking ability of medium and small size packaging like corrugated carton.
carton compressive force tester technical feature
1. large lcd display, pvc operation manual
2. microcomputer processing system, automatic measurement, test result intelligent judging, self-return
3. microcomputer data collecting and computing,
4. embedded microprinter
5. real-time display of compression resistance force, deformation and changing curve
6. three test modes of compression resistance, stacking and compression at fixed time and pressure
7. synchronous motor and accurate thread lead screw drive system
technical data
pressure range: 0-10kn
force resolution: 0.1n，display error: ±2%
display variation: ≤2%，back to zero error: ±0.2%fs
deformation measurement accuracy: ±1mm
compressing speed adjustable range: 5mmmin～90mmmin
compressing speed relative error: ±3%(within 5～90mmmin)
standard compressing speed: 12mmmin
stacking test speed: 5mmmin
lower platen stroke: 800mm
test space: 400mm(l)*600mm(w)*600mm(h)
upper and lower platen parallelism degree: ≤1mm
dimension: 850mm(l)*600mm(w)*1100mm(h)
weight: 200kg
carton compressive force tester standard
iso12048, tappi t804
