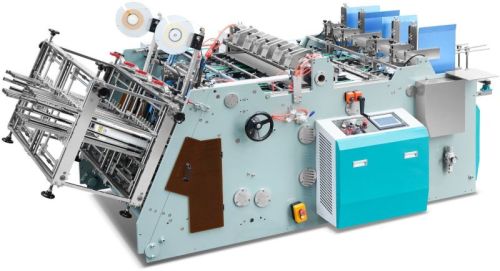

Carton Erecting Forming Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Automatic Carton Erecting machine is suitable for make Burger, Noodles, French fries, Popcorn boxes, Meal boxes, sweet boxes, four corner tray forming through cold glue process. (Note: Hot melt available at optional) With Firm structure, High quality, High efficiency.

View More Details

Send Enquiry

Company Information

Subasolutions

Vandalur, Chennai, Tamil Nadu

View Number

Member Since 3 Years
Nature of Business Trader

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	Single lane	Dual lane
Blank size (LWH)	Length: 100 x 450 mm Width: 100 x 580 mm Box Height: 20-200 mm	Length: 100 x 450 mm Width: 100 x 420 mm Box Height: 20-200 mm
Carton thickness	200-600 GSM/1.5mm corrugated	200-600 GSM/1.5mm corrugated boars
Carton conicity(Angle)	5°-40° mm	5°-40° mm
Total Power	5.5 KW, 3-Phase, 380V, 50HZ	7 KW, 3-Phase, 380V, 50HZ
Weight	2000 Kgs	2700 kgs
Machine dimensions	3520 x 1465 x 1550 mm	3600 x 1600 x 1600 mm
Speed	60-160 pcs/min speed may vary depending on material and shape.	120-320 pcs/min speed may vary depending on material and shape.
