Stainless Steel Polished Cartridge Heaters Maxiwatt (T1)

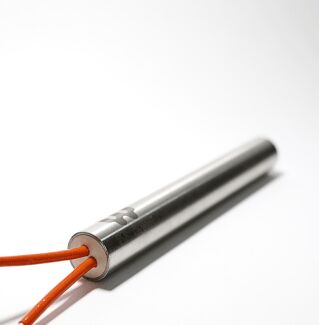

Compressed cartridge. Base termination Ref. "T1"

Fully compressed cartridge, with a refractory ceramic paste sealing the entrance. It is the base cartridge. from this cartridge the other modifications are made.

Recommendations:

Cartridges should be as tight as possible.

When preparing to drill holes where the cartridge will be located, consider the following factors:

• The inside of the bore should be uniform, without scratches or different diameters, however small, it is recommended to finish it with a reamer.
• Heat rises
• Dissipation is higher at the ends and heat will be concentrated in the center.
• Choose stock cartridges between 8 to 11 W/cm2
• Try to have the drill with an outlet, in order to have an easier disassembly.
• The connections must never be inside the borehole, as there is a risk of crossover or burning.
• The connections must be protected to prevent liquids, plastics, gases, etc. from falling out.
• It is advisable to incorporate probes that should be at a maximum distance of 15 mm from the cartridge, connected to a temperature regulator.
• The cartridges must have a minimum cartridge spacing of 3 times the cartridge diameter.

Indications:

• Indicate with symbols the warning of hot surfaces.
• Store as protected from humidity as possible.
• Cut off the total current of the machine or mold.
• Check that the machine or mold is at room temperature.
• Introduction without any anti-cold paste.
• Holes exclusively with H7 tolerance.
• Attach regulation and cut-off systems (thermocouples and regulators).
• Introduction of 100% of the cartridge case length.
• Do not insert the connection cable inside the hole.
• Protect the cables and connection inlet of the cartridge from: shocks, splashes and excess material.
• Do not pick up or carry the cartridge by the cable.
• Keep the cable away from the heat source and protected from heat.
• Do not repair damaged cables. Replace them with new ones identical to the original ones.
• Indicate and submit in writing, before acceptance of the order, the working conditions (vibration, shocks, humid environments).
• Never leave in operation without qualified human presence.
• All of the above are mandatory for the safety of people and property.
