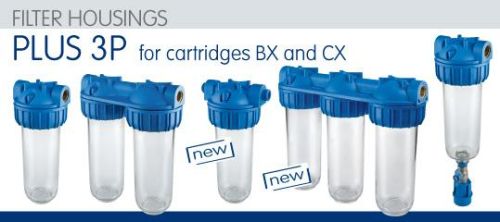

Cartridges Bx Filter Housing

We are offering atlas filtri filter housing plus 3p for cartridges bx and sx.
Range of housings designed to fit to exclusive bx cartridges with 45 mm double o-ring collar and to exclusive cx cartridges with 57 mm double o-ring collar. The housings are made in 2 main versions:
- 3p bx housings with female inout configurations at 12'', 34'' and 1'', with bsp or npt threads, with or without brass inserts, and with male inout configurations at 12'', 34'' and 1'' with bsp threads; for cartridge height at 5'', 7'', 10'', 20''. All 3p bx housings are available as single, duplex and triplex models.
- 3p cx housings with female inout connections 1''14, 1''12, 2'' with bsp threads, with or without brass inserts; for cartridge height at 10'', 20''.
Plus 3p bx and plus 3p cx housings for cartridges 10'' and 20'' are available also as s models with discharge valve and self-cleaning performance.
S models can be used with kit auto for automatic flushing and self-cleaning.
Plus 3p bx housings are available also as m models with 2 manometers.
Plus 3p bx and plus 3p cx housings are suitable for every point-of-entry (poe) application, as single or multi-stage on-line filters.
Plus bx housings and are manufactured with the finest and most advanced materials under constant focus on innovative processing technologies and ceaseless modernization to ensure the absolute quality of our products.
The housings are certified under the most stringent certification procedures and standards: dm 25 (italy), acs (france), gost (russia).
All models are available with clear and opaque blue bowls. Custom combinations of colors are available upon minimum quantity. A full set of accessories is available on demand to complete the housings kit: wall brackets, opening spanner, brass or plastic nipples with o-ring.
