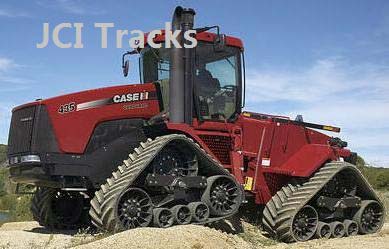

Polished CASE Tractor Track Assembly

The CASE Tractor Track Assembly that is offered by us is widely appreciated in the market for its superior manufacturing values in terms of materials used, technology, quality of treading, installation and maintenance, road grip and long term durability. We are recognized as on of the most trusted and experienced exporter and supplier of this premium quality CASE Tractor Track assembly, based in Hanzhong, Zhejiang, China.

Product description :

• Track width - 762mm
• Assembly Height - 1422mm
• Assembly Length - 2450mm
• Bearing - 23000kg
• Traction - 30000kg
• Weight - 1560kg/piece
• Temperature - 40^oC to +70^oC
• Track assembly Spec - 2420mm L X762mm W X1615mm H
• Sprocket Diameter - 910mm
• Sprocket center to Ground - 1130mm
• Idler wheel diameter - big one - 680mm.
• Small one - 320mm
• Weight - 1560kg/Piece
• Material - Steel and Rubber Running
• Temperature - +55^o - 40^o
• Rubber Tread hight - 30mm
• Rubber Track outside style - Agricultural style
• Frame Pinting - Rad, Blue, Green
• Optional Terrain - Snow, Soft, Mud, Sand and Rice land.
