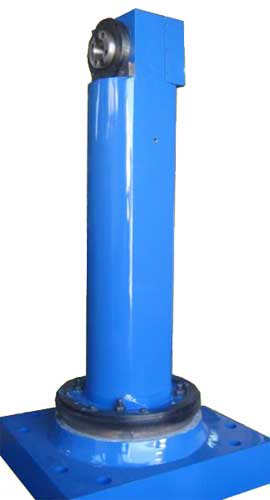

Contact SupplierOur Longreach Milling Attachments is manufactured from quality cast iron, ensuring to high durability and performance. These Longreach Milling Attachments is helpful in doing critical machining operations. Longreach Milling Attachments offered by us comprises of single piece cast body, a pair of spiral bevel gears, a spindle and a shaft and worm, worm wheel for effective tilting purposes. Avail these Longreach Milling Attachments at most affordable rates.
Construction of Longreach Milling Attachments
There are bigger couplings, shells, etc, which has certain right angle or Square shape machining at some distance from the machine spindle at inside and outside the job.Shaft is there supported in the housing.Front end, a bevel gear is also mounted which drives to other bevel gear mounted onto the spindle back. The Input and output ratio lies in1:1.Spindle taper can be BT ISOMT. Per. The pair of taper roller bearings supports the spindle at front.The drive bevel gear, there is an angular contact which supports the spindle on the back.Pair of deep groove ball bearing in the flange side and another matched pair of angular contact bearings at the spindle side gives major support to the main drive shaft in the housing.The bearing system is designed to ensure proper location support as well as preloading. Oil bath is also there for preventing oil leakage.This is provided for the bevel gears and bearings of the attachment. These spindle, shaft, and gears are fabricated of EN-353 case hardening steel, case hardened and ground.
