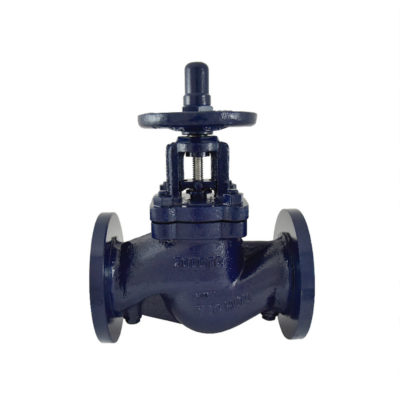

Cast Iron Double Regulating Balancing Valve

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Salient Features Design Standard BS 7350. Precise double regulation. Tamper proof setting. Handwheel Operated. Low noise flow. Can be made available with or without drain cocks. Flanged ends to BS 4504 Section 3.2 PN 16. EPDM Rubber sealing for a soft shut off. Test Pressure (Hydrostatic) : Shell : 24 kg/cm²g (340 psig) Maximum Operating Pressure (Hydrostatic) : 16 Bar at an ambient temperature upto 45°C Maximum Working Temperature : 110°C

View More Details

Send Enquiry

Product Details

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Body	Cast Iron	IS 210 Gr. FG 200	1
2	Nut	Carbon Steel	IS 1367	1
3	Washer	Carbon Steel	– – –	1
4	Disc Facing	EPDM Rubber	IS 5192 – 1	1
5	Disc Holder	Carbon Steel	– – –	1
6	Stem	Stainless Steel	ASTM A 276 Type 410.	1
7	Stem Seal	EPDM Rubber	IS 5192 – 1	1
8	Bonnet	Cast Iron	IS 210 Gr. FG 200	1
9	Gasket	Steam Jointing Sheet	IS 2712 Gr. W/3	1
10	Packing	PTFE	BS EN 12086 – 1	–
11	Gland	Stainless Steel	ASTM A 276 Type 410.	1
12	Indicator	Carbon Steel	– – –	1
13	Sleeve	Aluminium Bronze	BS EN 1982 AB-1	1
14	Handwheel	Cast Iron	IS 210 Gr. FG 200	1
15	Washer	Carbon Steel	– – –	1
16	Sleeve Nut	Stainless Steel	ASTM A 276 Type 410.	1
17	‘O’ Ring	Nitrile Rubber	– – –	1
18	Nut	Carbon Steel	– – –	1
19	Adjusting Stud	Carbon Steel	– – –	1
20	End Cap	Cast Iron	IS 210 Gr. FG 200	1
21	Studs & Nuts	Carbon Steel	IS 1367	4 Each
22	Plug	Bronze	IS 318 Gr. LTB2	2
