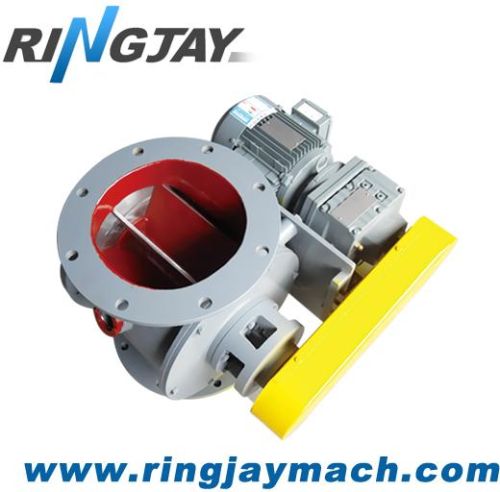

Cast Iron Rotary Valve

We are offering cast iron rotary valve.
Rotary valve application:
the rvc rotary valve andairlocks have been designedto offer an economic and suitable solution for standard applications with a limited pressure differential.these valves are used for dosing or dischargingmaterials in pneumatic conveying systems or installed below siloshoppers for abrasive or mildly cohesive products.
Features and function:
* standard valves manufactured in cast iron
* connection flange in accordance with gb pn10, ansi 150#, din pn10, jis 5k10k
* close vane tolerances ensure high sealing and feeding efficiency with maximum durability.
* outboard bearing design protects bearings in high-temperature and high-psi applications.
* excellent performance in high-temperature applications up to 260°c, 750of
* pressure differentials up to 1.5 bar (22psig).
* open ended rotor with 8 vans
options:
* 304, 316,304l,316l cast stainless steel valve housing.
* 6 vane, 10 vane or 12 vane rotor.
* rotor design: close ended, shallow pocked, scalloped, and adjustable-tip
* some larger sizes also available with rectangular designs
* interior coatings: hard chrome, tungsten, and teflon
* quick clean design with extraction device
* air purge shaft sealing
* vent opening in body
* accessories: blow-through adapter, speed monitor, vent hopper, air purge regulation station
