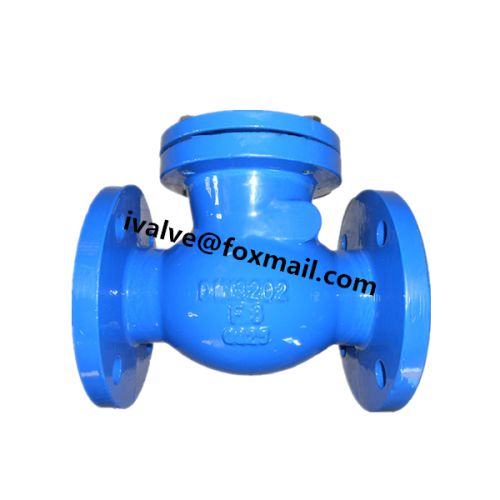

Cast Iron Swing Check Valve, Brand Name : CheckValves

Cast Iron Swing Check Valve
Our range:butterfly valve,gate valve,check valve,globe valve,ball valve,y strainer,rubber joint
din f6 bs5153 ansi swing type check valve
specifications
valve standard: din3352, mss sp-71, bsen 12334
nominal diameter: 2"-24"dn50-dn600
working pressure: 101625bar;125150psi
face-to-face: ansi b16.10, iso 5752 series 10, en 558 series 10, din3352 f6
flange accommodation: ansi b16.1 class125150, en1092-2 pn16
tightness check: api 598, iso 5208, en12226-2
material
body: cast iron or ductile iron
bonnet: cast iron or ductile iron
seat ring: brass or cast bronze or stainless steel(ss304)
arm: cast iron or ductile iron
disc: cast iron or ductile iron
pin: stainless steel .
