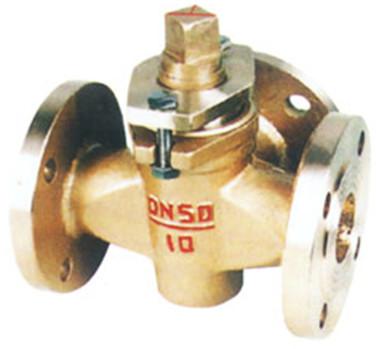

Cast Iron Three-way Copper Plug Valves

We are offering three-way copper plug valve is applicable for water, steam, oil
medium & temperature
model nominal pressure
pn(mpa)
testing pressure ps(mpa) applicable medium working temperature(℃)
shell sealing
x44t 1.0 1.5 1.1 water, steam, oil ≤100
dimensions
nominal pressure
pn(mpa) nominal diameter
dn(mm) dimensions(mm)
l d
d1 d2 z-φd □s h h
1.0 25 145 115 85 56 4╳φ14 17 38 133
32 170 135 100 78 4╳φ18 18 45 152
40 180 145 110 85 4╳φ18 24 55 212
50 200 160 125 100 4╳φ18 28 74 260
65 220 180 145 120 4╳φ18 32 82 295
80 250 195 160 135 4╳φ18 40 95 327
100 300 215 180 155 8╳φ18 45 135 425
125 350 245 210 185 8╳φ18 54 154 482
150 400 280 240 210 8╳φ23 62 172 512
200 450 335 295 265 8╳φ23 75 195 605
250 530 390 350 320 8╳φ23 85 230 660
300 580 440 400 368 8╳φ23 100 263 760.
