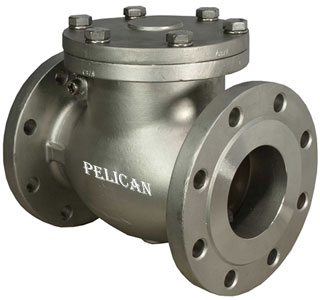

Cast Steel Check Valve

Listing ID #4346950

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

Manufactured in accordance with BSS 1868, Bolted cover, ends flanged and drilled to ANSI B 16.5 with raised face, renewable seat, valves tested to API 598 ANSI CLASS 150SIZES 40 mm to 300 mm ANSI CLASS 300Sizes 40 mm to 300 mm ANSI CLASS 600 Sizes 40 mm to 200 mm.
View More Details
Send Enquiry

Company Information

  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon



PART NO DESCRIPTION MATERIAL SPECIFICATION
1 BODY CARBON STEEL ASTM-A-216 GR W C B
2 COVER DO DO
3 DISK DO DO
4 HINGE DO DO
5 HINGE PIN 13%CRSS A182GR F6/AISI 410
6 BODY SEAT DO DO
7 DISK FACE DO DO
e GASKET CAF IS:2712/SRIRAL WOUND SS 304 WITH ASBESTOS FILLER
9 BOLTS/STUDS ALLOY STEEL ASTM-A-193 GR B7
10 NUTS DO ASTM-A-194 GR 2H

Company Details close-icon

PELICAN’s range offers Gate Valve, Non Return Valve, Globe Valve, Diaphragm Valve, Butterfly Valve, Ball Valve, Y Strainer, Pot Strainer Double Beat Valve in choice of Stainless Steel, Cast Steel, Cast Iron & Forged Steel. The Valves are widely used In Steam, Hot Oil, Air, Gas, Water, Chemicals and various other fluid applications In Fertilizer, Power, Steel, Textile, Sugar, Boiler, Chemical, Petro Chemical, Cement & Allied Industries. Our Valves are ranging from 15 mm to 1200 mm sizes In rating ASA 150, ASA 300, ASA 600, ASA 800, DIN ND 16 & DIN ND. /JO, IS 780, IS 2906, IS 5312, IS 933S, AWWA-C-504.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
Tell us your Buy Requirement to Get Instant Response
Tell us what you need?

Looking for Cast Steel Check Valve?

Quantity
Seller Contact Details
  • Seller Pelican Valves & Engineering Works
  • Address Rash Behari, Kolkata, West Bengal
