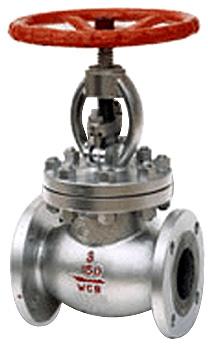

Cast Steel Globe Valve

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

VALTECH” robust design, Cast Steel Globe Valves are designed and manufactured with reference to Standard BS-1873 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard....

View More Details

Send Enquiry

Company Information

Valtech Industries

Saki Vihar, Mumbai, Maharashtra

View Number

Member Since 19 Years
Nature of Business Retailer
Year of Establishment 1975

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

VALTECH” robust design, Cast Steel Globe Valves are designed and manufactured with reference to Standard BS-1873 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION.

“VALTECH” Cast Steel Globe Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 500NB and pressure rating from 150# to 600#.

Sr.No.	Parts Name	Material
		Carbon Steel	Alloy Steel	Stainless Steel
1	Body	CCS A-216 Gr.WCB	CAS A-217 Gr.WC6/WC9	CSS A-351 Gr.CF8/CF8M
2	Bonnet	CCS A-216 Gr.WCB	CAS A-217 Gr.WC6/WC9
3	Plug	Carbon SteelA-216 Gr.WCB	WC6/WC9+ 13% Cr + Stld
4	Seat Ring (Seal Weld)	+ 13% Cr Faced	SS A-240TP 304 + Stld	Integral with Body
5	Spindle	Stainless Steel A-276 TP 410		Stainless Steel A-276 TP 304 /316
6	Spindle Locking Plate
7	Thrust Washer
8	Gasket	Spiral Wound SS304/316 with Grafoil Filled
9	Bonnet Stud	Alloy Steel A-193 Gr. B7
10	Bonnet Stud Nut	Carbon Steel A-194 Gr.2H
11	Bonnet Bush	Stainless Steel A-276 TP 410		Integral with Bonnet
12	Gland Packing	Grafoil
13	Gland Bush	Stainless Steel A-276 TP 410		SS 304/316
14	Gland Flange	Carbon Steel IS 2062
15	Cross Bolt & Nut	Carbon SteelA-307 Gr.B/A-563 Gr.A
16	Eye Bolt	Carbon SteelA-307 Gr.B/A-563 Gr.A
17	Yoke Sleeve	S.G. Iron ASTM-A-536 Gr. 80-55-06
18	Spindle Guide	Carbon Steel IS 2062
19	Lubricator	Steel (Commercial)
20	Gear Casing	Standard (Commercial)
21	Thrust Bearing	Bearing Steel
22	Gear Housing	Carbon Steel A-216 Gr.WCB
23	Gear Carrier	Carbon Steel A-216 Gr.WCB
24	Hand Wheel Key	Carbon Steel IS 2062
25	Hand Wheel	Fabricated Carbon Steel
