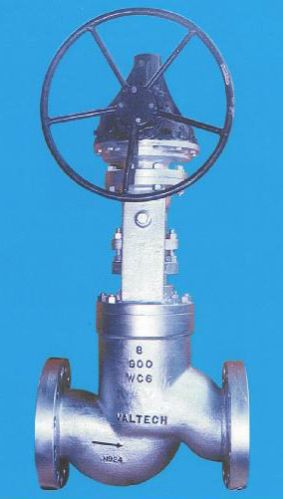

CAST STEEL GLOBE VALVE PRESSURE SEAL

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

CAST STEEL GLOBE VALVE (PRESSURE SEAL BONNET) “VALTECH” robust design, Cast Steel Pressure Seal Globe Valves are designed and manufactured with reference to Standard BS-1873 for....

View More Details

Send Enquiry

Company Information

Valtech Industries

Saki Vihar, Mumbai, Maharashtra

View Number

Member Since 19 Years
Nature of Business Retailer
Year of Establishment 1975

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

CAST STEEL GLOBE VALVE (PRESSURE SEAL BONNET)

“VALTECH” robust design, Cast Steel Pressure Seal Globe Valves are designed and manufactured with reference to Standard BS-1873 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION .

“VALTECH” Cast Steel Pressure Seal Globe Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 300NB and pressure rating from 900# to 2500#.

MATERIAL OF CONSTRUCTION
Sr.No.	Parts Name	Material
1	Body & Bonnet	ASTM A216 Gr. WCB, ASTM A 352 Gr. LCB, ASTM A 351 Gr. CF8/CF8M/CF3/CF3M
2	Disc & Seat Ring	ASTM A 216 Gr. WCB, ASTM A 351 Gr. CF8/CF8M/CF3/CF3M Seal faces are stellited
3	Stem & Gland	ASTM A 276 Type 410/304/316
4	Yoke Sleeve	S.G. Iron
5	Gland Packing	Grafoil
6	Pressure Seal ring	Expanded Graphite
7	Stud / Nut	ASTM A 193 Gr. B7/B8 & ASTM A 194 Gr. 2H/8
8	Yoke & Hand Wheel	Carbon Steel
