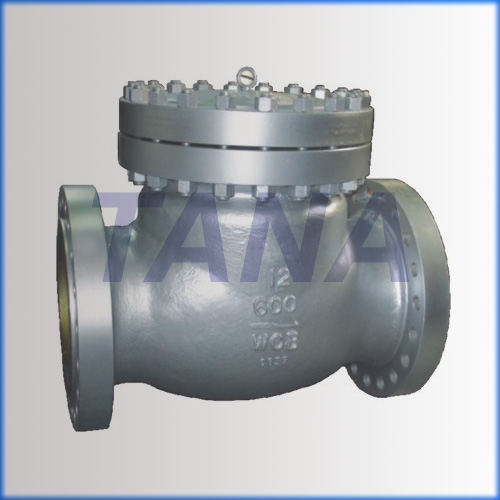

Cast Steel Swing Check Valve

We are offering cast steel swing check valve.
quick details
standard or nonstandard:standard
structure:check
pressure:medium pressure
power:automatic
material:casting
temperature of media:medium temperature
media:water,gas,oil etc.
port size:2 ~36 inch
place of origin:zhejiang, china (mainland)
model number:h44h
brand name:tana or oem
end connection:flanged,butt welded
certificate:api6d
certificate-1:ce
certificate-2:iso9001
packaging & delivery
packaging details: plywood case
delivery detail: normally within 15-45 days according to order qty.
specifications
cast steel swing check valvesize2"-36" or dn50-dn900pressure: class150lb-2500lb , pn16-pn100material: wcb,wcc,lcb,wc6 etc
tana cast steel swing check valve
design features
full open design bolted bonnet swing type disc design optional buffering damp structure renewable or and welded seat flanged or buttwelding ends
technical specification
size2"-36" or dn50-dn900
pressure: class150lb-2500lb , pn16-pn100,10k-40k
material: wcb,wcc,lcb,wc6,wc9,c5,c12,cf8,cf8m,cf3,cf3m,cf8c,cn7m etc.
design & manufacture std.: api594,asme b16.34, api 6d, jisb2074-jisb2084,bs1868
face to face std.:asmeb16.10, api 6d, jisb2002,din3202,en558
end connection std.: asme b16.5, asme b16.47, jisb2212-jisb2214, din2543-2550,
asme b16.25
test standard: api598,api 6d, jisb2003
tana will provide you satisfying price, quality and service.
provide co,fa,fb,fe,ff,fn,fp,fx etc. Certificates as per customer’s requirement.
