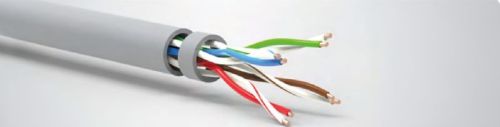

Features:
Suitable for aerial application
Flexible and Light Weight
Designed for rugged atmosphere
| Characteristics | Spec |
|---|---|
| Characteristics Impedance | 100±15 Ω @100MHz |
| Conductor Resistance | 9.38 Ω/100m |
| Conductor Resistance Unbalance | 5%Max |
| Mutual Capacitance | 5.6nF/100M |
| Delay Skew | <45nS/100M |
| Propagation Delay | <536nS/100M |
| Frequency(MHz) | Return Loss(dB) | Insertion Loss (dB) | NEXT (dB) | PSNEXT(dB) | ACR-F(dB) | PS ACR-F(dB) |
|---|---|---|---|---|---|---|
| (Min) | (Max) | (Min) | (Min) | (Min) | (Min) | |
| 1 | 19 | 3 | 60 | 57 | 58.6 | 55.6 |
| 4 | 19 | 3.9 | 54.8 | 51.8 | 46.6 | 43.6 |
| 8 | 19 | 5.5 | 50 | 47 | 40.6 | 37.6 |
| 10 | 19 | 6.2 | 48.5 | 45.5 | 38.6 | 35.6 |
| 16 | 19 | 7.9 | 45.2 | 42.2 | 34.5 | 31.5 |
| 20 | 19 | 8.9 | 43.7 | 40.7 | 32.6 | 29.6 |
| 25 | 18 | 10 | 42.1 | 39.1 | 30.7 | 27.7 |
| 31.25 | 17.1 | 11.2 | 40.5 | 37.5 | 28.7 | 25.7 |
| 62.5 | 14.1 | 16.2 | 35.7 | 32.7 | 22.7 | 19.7 |
| 100 | 12 | 21 | 32.3 | 29.3 | 18.6 | 15.6 |
