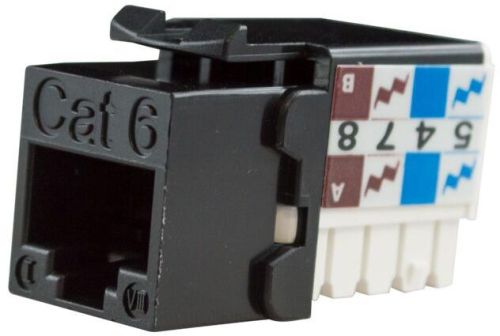

Cat6 Keystone Jacks

MATERIAL
KEYSTONE JACK HOUSING : ABS HIGH-IMPACT UL94V-0 THERMOPLASTIC
SPRING WIRE : PHOSPHOR BRONZE 5100W TEMPER WIRE, Φ=0.45MM, 3U” AU 30U" PDNI OVER 60U" NICKEL UNDERCOAT
IDC PLASTIC : POLYCARBONATE RESIN HIGH-IMPACT UL94V-0 THERMOPLASTIC
IDC CONTACT : PHOSPHOR BRONZE C5191R-H, T=0.4MM, 150U" TIN OVER 80U" NICKEL UNDERCOAT
PHYSICAL CHARACTERISTICS
SUITABLE IMPACT TOOL：110 STYLE PUNCH DOWN TOOL.
INSERTION LIFE : 750 MATING CYCLES WITH FCC COMPLIANT RJ-45 PLUG.
CONTACT FORCE : 100 GRAMS WITH FCC COMPLIANT RJ-45 PLUG.
PLUG RETENTION FORCE : 11 LBF MIN.
DURABILITY : 200 TERMINATION CYCLES.
CONTACT COMPATIBILITY : ACCOMMODATES 22 TO 26 AWG SOLID 24 AWG STRANDED.
OPERATING TEMPERATURE RANGE : -10 C TO 60 C.
STORAGE TEMPERATURE RANGE : -40 C TO 68 C.
HUMIDITY : 10%~90%RH.
ELECTRICAL
INSULATION RESISTANCE : 500 MΩ.
DIELECTRIC WITHSTANDING VOLTAGE : 1000 V AC.
DC CURRENT RATING : 1.5 Amps.
DC RESISTANCE : 0.1Ω.
CONTACT RESISTANCE : 20mΩ.
