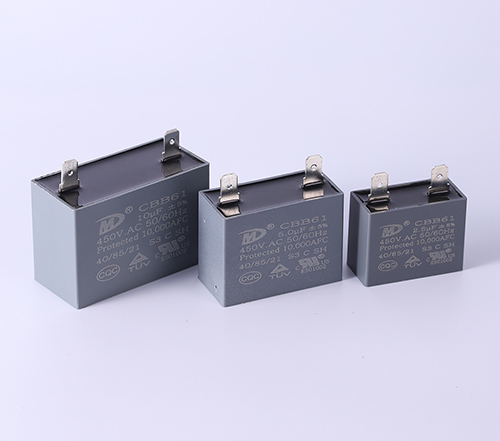

CBB61 Celling Fan Capacitor With Ear

The products are made of electrical class polypropylene film, zinc-aluminum metalized electrode, high-quality engineering plastic box, and enveloped with epoxy resin, welded with pvc electric wire. They have the characteristics of small loss, anti-moist, excellent electrical performance, reliability, large capacity, long life and good self-healing properties, and high universality, flexible assembly.
capacitors specification:
safety approvals: cqculvdetuv
implmented standard: gbt3667, ul810, en60252-1
climatic category: 257021, 258521
rated voltage: 250vac~500vac(50-60hz)
capacitance range: 0.1uf~35uf
capacitance tolerance: +_5%(j), +_10%(k)
testing voltage
between terminals: 2*un(vac)60s(cqc, vde, tuv), 1.5*un(vac)60s(ul)
between terminals and case: 2*un+1000(vac)60s(> =2000vac)
insulation resistance(20 degree centigrade): between terminals and case> =5000c(100vdc, 60s)
tangent of loss angle(20 degree centigrade):
fauit currency: p0p2
capacitance(uf) 250v 300v 400v 450v 500v
lwh lwh lwh lwh lwh
0.8uf 32*10*20 32*10*20 32*10*20 32*11*22 36*11*22
1.0uf 32*10*20 32*11*22 32*11*22 36*10*20 36*13*23
1.2uf 32*10*20 32*11*22 36*10*20 36*11*22 37*13*24
1.5uf 36*10*20 36*11*22 36*11*22 37*13*24 37*15*27
2.5uf 36*10*20 36*13*23 36*13*23 38*15*25 38*17*28
3.0uf 36*11*22 37*13*24 38*15*25 38*17*28 38*19*31
3.5uf 36*11*22 38*15*25 38*17*28 38*18*29 47*19*31
4.0uf 36*13*23 37*15*27 38*17*28 38*19*31 47*19*33
5.0uf 37*13*24 38*17*28 47*17*28 47*19*33 47*25*35
6.0uf 38*15*25 38*18*29 48*19*31 47*20*35 47*27*37
8.0uf 38*17*28 47*17*31 47*20*35 47*25*35 47*30*43
